500W ELECTRIC BIKE CONVERSION KIT
- Product Parameters
Motor Introduction
| Model | AM500 |
| Rated Voltage | 36/48V |
| Rated Power | 180-500W |
| Wheel Size | 16''-28'' |
| Rated Speed | 40km/h |
| Rated Efficiency | >82% |
| Reduction Ratio | 1:4.5 |
| Weight | 5kg |
| Position | front/rear |
| Open Size | 100mm/135mm |
| Drive and Freewheel | 6-9s |
| Cable Location | Shaft Center Right |
| Spoke Specifition | 12g/13g |
| Spoke Hole No. | 36H |
| Hall Sensor | with |
| Integrate Speed Sensor | with |
| Surface | Black/Silver |
| Brake Type | V brake/Disc brake |
| Salt Fog Test | 24/96 |
| Noise(db) | <55db |
| Waterproof Grade | IP65 |
Kit Introduction

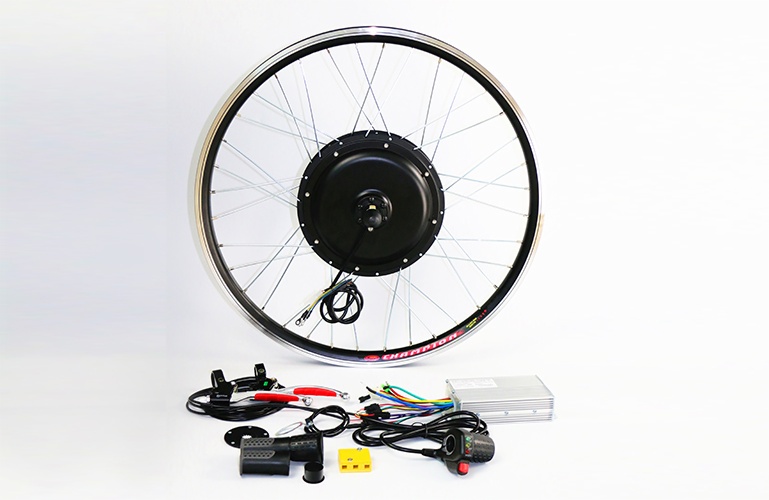

This system is including:

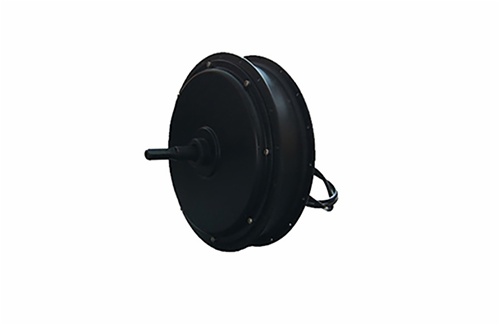

1.Motor wheel 36v 500w with 20 inch - 28 inch wheel assembly

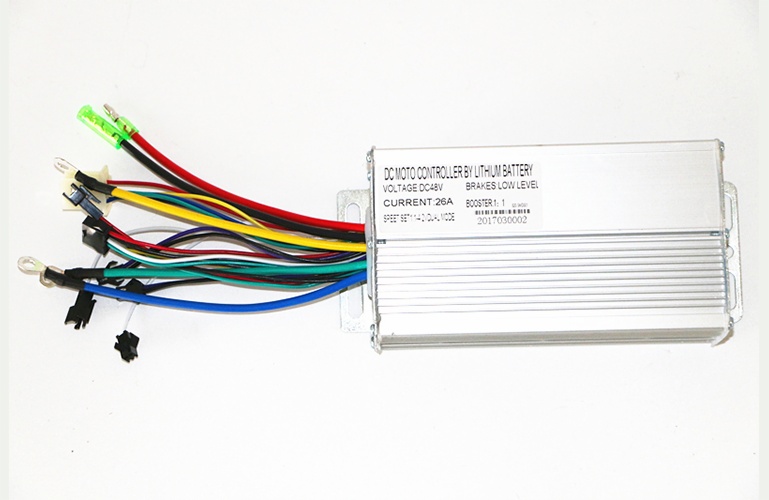

2.Controller 36v 22A squre wave normal connector as well as waterproof connector

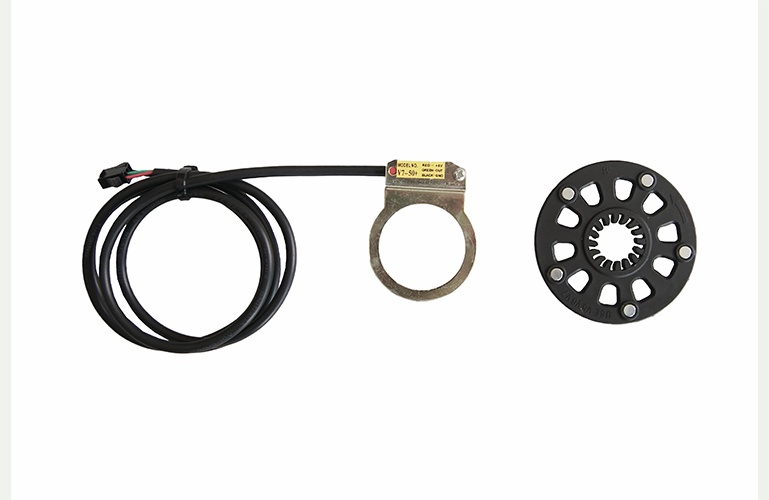

3.PAS 1:1 pedal assistant

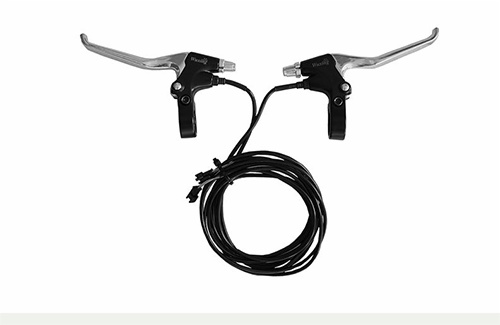

4.Brake lever a pair suited. One for left, one for right

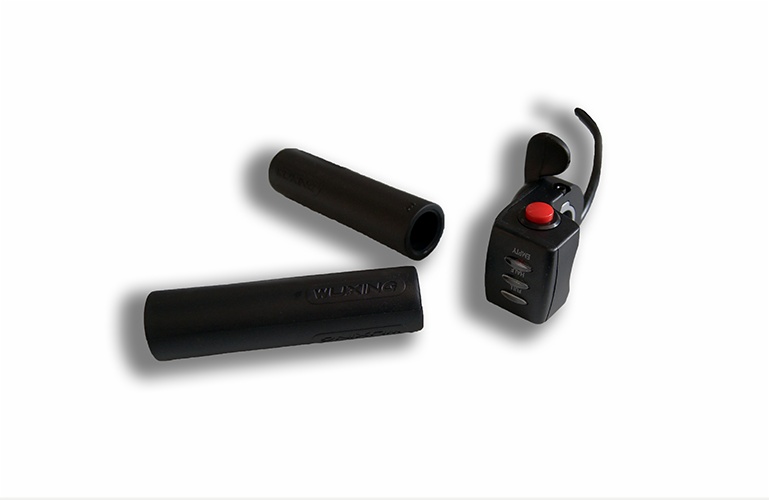

5.Thumb/Twist throttle To start the motor and speed up
6.Use manuel Tell you how to make the kit work
Optional parts for 36v 500w brushless geared/gearless motor e bike kit
| Optional parts | Price (USD) |
| Casette motor (based on the normal motor ) | 15 |
| LED/LCD/Colourful LCD display | 10/30/50 |
| Freewheel (7speed /8speed /9speed ) | 10 (7speed ) / 15(8speed) / 20( 9 speed ) |
| Front light for electric bicycle | 5 |
| Tire for wheel | 10/set |
| Disc brake (160mm ) | 10 |
| Hydralic brake sensor | 10 (one pair ) |
| Torque arm | 5 |
| Controller bag | 10 |
| Battery | different type for choosing |
| Warranty | |
| Motor | 24months |
| Lithium battery | 12months |
| Controller | 12months |
| Other parts | 12months |
