DOLPHIN TYPE BATTERY
- Product Parameters

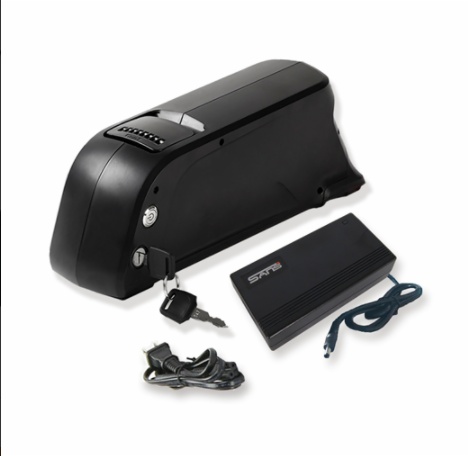

Features A.Mounting bracket bolts onto the bicycle's water bottle mount. Lockable and removable with 2 keys B.5V USB port for charging devices C.Charge level indicator D.lightweight ~ 7 lbs E.Dimensions: 9cm wide,11.5cm high,35cm long.It has a tapered shape with the back end at 5 inches tall and the front end 4 1/4 inches tall. F.2 Amp charger included |

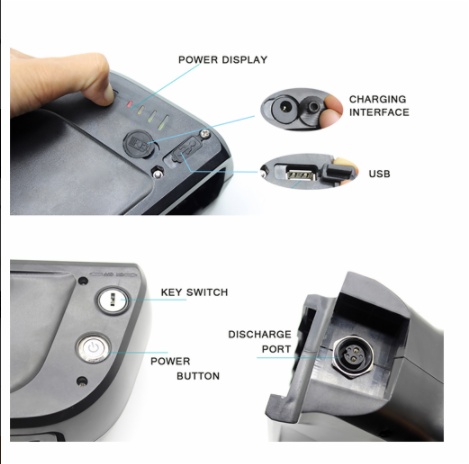

 USB CHARGING PORTProvide power to motor also can charging your phone at the same time. |  ALUMINUM HOLDER Secure Keep your battery on the frame. Built-in BMS (BATTERY MANAGEMENT SYSTEM),Protect the battery to avoid overcharge and over discharge. |  BATTERY CELL 18650 Rechargeable Lithium Battery cell. No memory effect, recharge up to 1000 cycles. Higher energy density and lower weight than other types rechargeable batteries cell. |

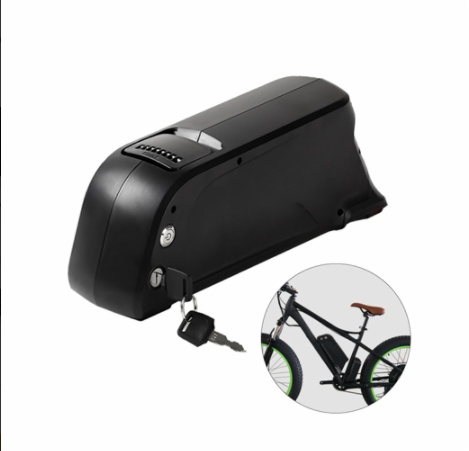

 CHARGERIntelligent charge system: voltage of each cell can be detected ,each cell can beprotected against overcharge, over voltage ,short circuit and overheat, and so that battery can be charged balance. |  PLUGSupply relevant plug to your countries. |  MOUNTING POSITION |
| Technical Parameters |
Nominal Voltage | Rated Capacity | Battery Material | Battery Cell | Dimension | Rated Discharge Current | Max Discharge Current | Cycle Life |
| 36V | 10Ah | Li-Polymer | 3.7V 2000mAh | 35*9*11.5(cm) | 20A | 25A | 800(70%) |
| 36V | 13Ah | Li-Polymer | 3.7V 2600mAh (S) | 35*9*11.5(cm) | 20A | 25A | 800(70%) |
| 48V | 10.4Ah | Li-Polymer | 3.7V 2600mAh (S) | 35*9*11.5(cm) | 25A | 30A | 800(70%) |
| 48V | 11.6Ah | Li-Polymer | 3.7V 2900mAh (S) (P) | 35*9*11.5(cm) | 30A | 35A | 800(70%) |
*S=SAMSUNG P=PANASONIC |
Features A.Mounting bracket bolts onto the bicycle's water bottle mount. Lockable and removable with 2 keys B.5V USB port for charging devices C.Charge level indicator D.lightweight ~ 7 lbs E.Dimensions: 9cm wide,11.5cm high,35cm long.It has a tapered shape with the back end at 5 inches tall and the front end 4 1/4 inches tall. F.2 Amp charger included |
| USB CHARGING PORT Provide power to motor also can charging your phone at the same time. | ALUMINUM HOLDER Secure Keep your battery on the frame. Built-in BMS (BATTERY MANAGEMENT SYSTEM),Protect the battery to avoid overcharge and over discharge. | BATTERY CELL 18650 Rechargeable Lithium Battery cell. No memory effect, recharge up to 1000 cycles. Higher energy density and lower weight than other types rechargeable batteries cell. |
| CHARGER Intelligent charge system: voltage of each cell can be detected ,each cell can beprotected against overcharge, over voltage ,short circuit and overheat, and so that battery can be charged balance. | PLUG Supply relevant plug to your countries. | MOUNTING POSITION |
| Technical Parameters |
Nominal Voltage | Rated Capacity | Battery Material | Battery Cell | Dimension | Rated Discharge Current | Max Discharge Current | Cycle Life |
| 36V | 10Ah | Li-Polymer | 3.7V 2000mAh | 35*9*11.5(cm) | 20A | 25A | 800(70%) |
| 36V | 13Ah | Li-Polymer | 3.7V 2600mAh (S) | 35*9*11.5(cm) | 20A | 25A | 800(70%) |
| 48V | 10.4Ah | Li-Polymer | 3.7V 2600mAh (S) | 35*9*11.5(cm) | 25A | 30A | 800(70%) |
| 48V | 11.6Ah | Li-Polymer | 3.7V 2900mAh (S) (P) | 35*9*11.5(cm) | 30A | 35A | 800(70%) |
*S=SAMSUNG P=PANASONIC |
