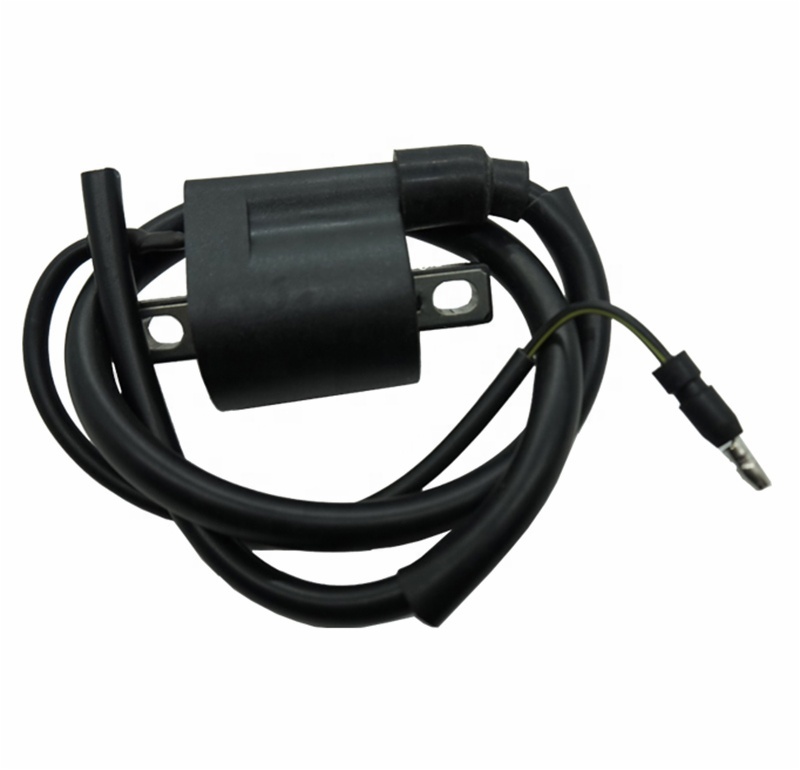

Motorcycle ignition coil CG125 CG150 WAVE125
- Product Parameters
Motorcycle ignition coil CG125 CG150 WAVE125
Motorcycle electric parts 125cc CG125 CG150 WAVE 125 WAVE125 motorcycle ignition coil
Technical requirements
1,Appearance: smooth surface, no foul, and the adhesive material; package surface bubbles, cracks and other defects;
1,Appearance: smooth surface, no foul, and the adhesive material; package surface bubbles, cracks and other defects;
2,Product performance:
--Minimum continuous ignition speed: ≤ 400r/min;
--Continuous ignition speed range: 400 ~ 11000r/min (three needles pole distance: 6mm; minimum and maximum duration of continued sparking speed not less than 20s;
--High voltage insulation dielectric strength: three needles pole distance 12mm, speed 3000r/min, which lasted 40S no breakdown;
--Ignition coil surface and the high-voltage fuses, high pressure outlet of the spark plug cap and the outer surface of the resistor value is not less than 1000MΩ;
--High-voltage coil main body and the spark plug cap pull-off force: ≥ 50N;
--Spark cap damping resistance: 5 ± 0.5KΩ;
-- Coil pressure:> 38KV;
-- The ignition coil can withstand high pressure and has good insulation performance;
--High temperature epoxy resin vacuum packaging, vibration resistance, strong anti-interference;
--Minimum continuous ignition speed: ≤ 400r/min;
--Continuous ignition speed range: 400 ~ 11000r/min (three needles pole distance: 6mm; minimum and maximum duration of continued sparking speed not less than 20s;
--High voltage insulation dielectric strength: three needles pole distance 12mm, speed 3000r/min, which lasted 40S no breakdown;
--Ignition coil surface and the high-voltage fuses, high pressure outlet of the spark plug cap and the outer surface of the resistor value is not less than 1000MΩ;
--High-voltage coil main body and the spark plug cap pull-off force: ≥ 50N;
--Spark cap damping resistance: 5 ± 0.5KΩ;
-- Coil pressure:> 38KV;
-- The ignition coil can withstand high pressure and has good insulation performance;
--High temperature epoxy resin vacuum packaging, vibration resistance, strong anti-interference;
3,Product meets the the motorcycle JB/T9865.1-1999 standard;
