SNOW E-BIKE FR-26B

Send
  • Product Parameters
SNOW E-BIKE FR-26B

Comfortable 26/20*4.0" fat tire e-bike with reliable motor and lithium battery.This fat tire ebike can be with bafang mid motor and CNEBIKES hub motor both.Battery for this fat tire ebike can be with samsung cell or local A grade cell.

SNOW E-BIKE FR-26B

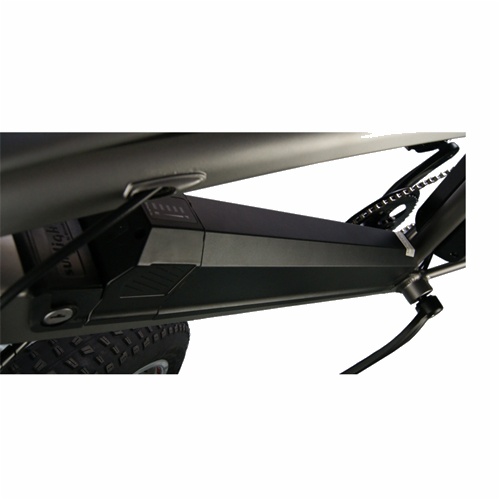

Battery
High capacity lithium battery.
Combined with the frame.

SNOW E-BIKE FR-26B

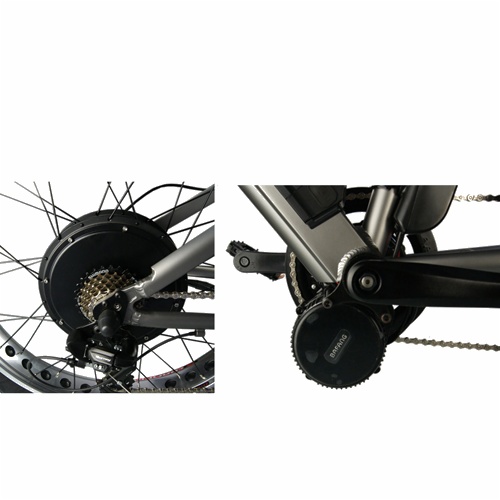

Motor
Mid motor or Hub motor for optional
SNOW E-BIKE FR-26B
HANDLE

SNOW E-BIKE FR-26B
SADDLE
SR saddle, soft and comfortable		SNOW E-BIKE FR-26B
BRAKE
SHIMANO brake system
SNOW E-BIKE FR-26B
TRANSMISSION
SHIMANO transmission system



Technical Parameters

   Frame Material   Aluminum alloy frame
   Motor   Mid motor : TS 36V 250W ; BAFANG 48V 1000W
   Hub motor : 36V 250W / 500W ; 48V 500W / 750W
   Battery   36V 11Ah / 36V 13Ah / 48V 11.6Ah / 48V 14Ah down tube
   Controller   Intelligent controller
   Charger   AC 100V-240V,2amps smart charger
   Charging time   6-8 hours
   Loading   150kg
   Tyre   KENDA 26*4.0

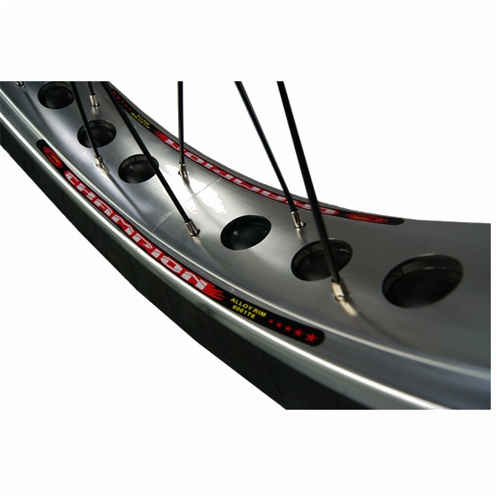

   Rim   26*4.0 double-wall alloy rim
   Front fork   Aluminum can lock up front fork
   Brake   SHIMANO disc-brake
   Shifter   SHIMANO
   Derailleur   SHIMANO
   Free wheel   SHIMANO 7 speed
   Display   LCD003 display
   Brake lever   WuXing brake levers
   Chain wheel   46T single speed
   Saddle   SR saddle
   Seat post   Al alloy
   Pedal   wellgo LU-C25
